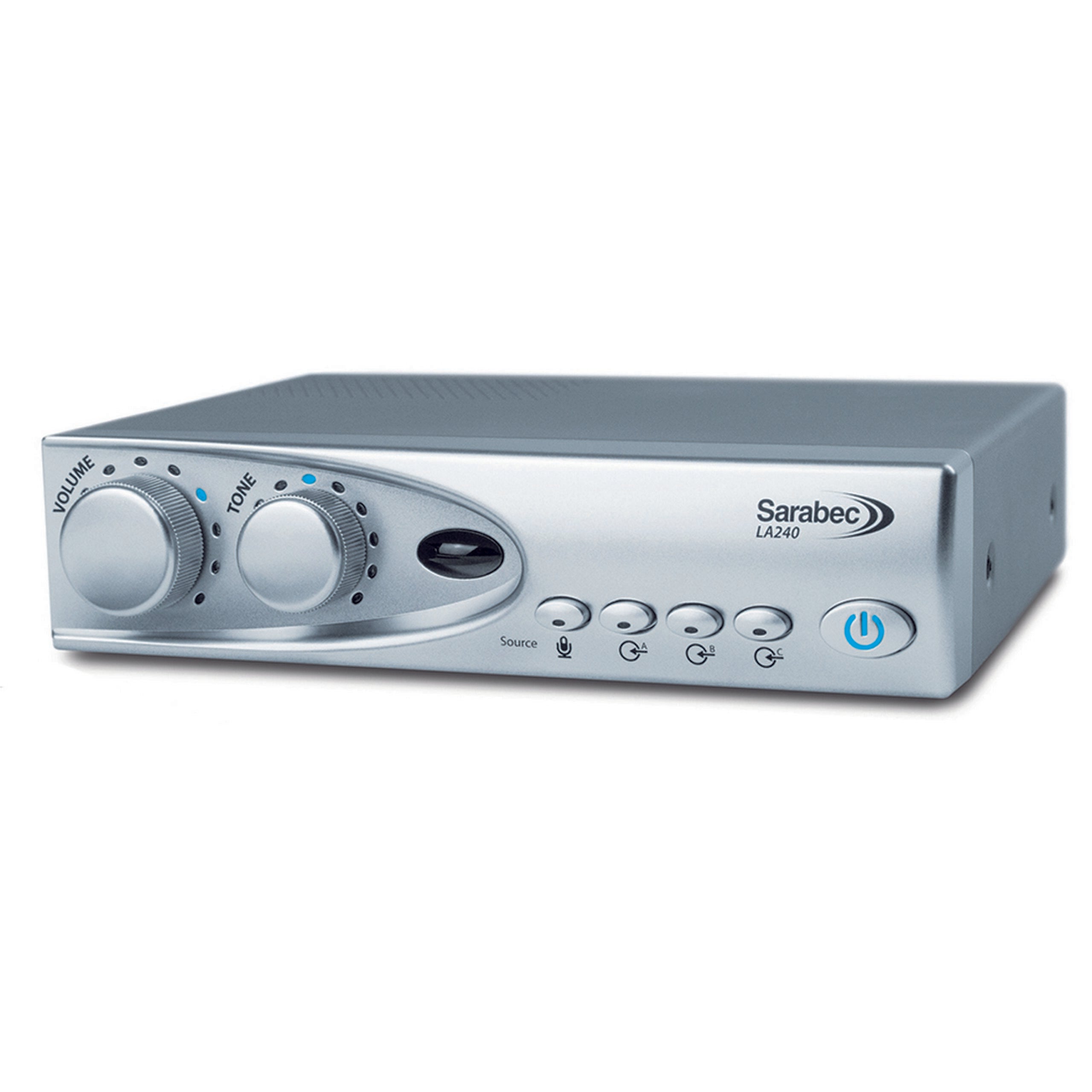

Sarabec LA240 Room Loop System

The LA240 Loop System provides a practical solution for hearing aid users to more easily listen to their TV or Audio equipment via the “T” or “Loop” program of their hearing aid. With no direct connection between the user and TV or Audio equipment the user can move freely within the looped area and listen comfortably to a TV or audio equipment without the distractions of normal listening. The Loop System is used in conjunction with a hearing aid with a “T” or “Loop” program found on many ‘behind the ear’ or ‘in the ear’ hearing aids. The Loop system picks up the sound from a TV via a direct connection or microphone and feeds it to the amplifier. The sound is then passed to a loop of wire around the listening area, which in turn transmits the sound inductively, “magnetic sound waves”, to a hearing aid with the loop facility. The user may then adjust the loop volume or tone to suit their hearing preference without affecting others. The Loop System is supplied with either Loop Cable or Loop Pad.

Key Features

• Optical and Coaxial digital audio input
• Separate Mains power supply allowing use by DC inputs from 12-24V, one version covers all markets
• Control settings memorised allowing remote power switching
• Digital Rotary Volume and Tone controls with LED indication
• Source selection of all inputs from the front panel, mixing of inputs is possible.
• Increased output current 3A RMS and 40m Loop cable coverage up to 70m2
• Loop Level Indicator
• Priority Function Control
• Automatic Gain Control
• On/Off Mains Switch
• Blue LED Function Indicators
• Red LED Level Indicator
• 2 Microphone Inputs
• 3 Line inputs

Technical Specifications

Power Supply
18V 1.5A Power Supply
12-24V DC 2A External Supply
Controls
Rotary Volume Control
Rotary Tone control
On/Off power switch
Source selector switches
Priority switch
Input connections
Digital Audio TOSlink/Coaxial
2 x Microphone inputs. 3.5mm mono jack plug. DC powered 5V for electret microphones
2x Aux In Left/Right line inputs. Phono/RCA sockets. For direct connection to a TV sound output or other audio sources via SCART or other suitable sockets.
Output connections
Push grip connectors for loop cable or loop pad (Labelled: Loop Cable). Loop will give full output with loop resistance between 0.5 and 1.5 Ohms.
3.5mm stereo jack for headphones (Phones) 8-60 Ohms
Loop output
3.0A output current @ 100-5KHz. Meets BS EN60118-4:2006 for a loop not exceeding 6.5m (20ft) in width. Suitable for areas up to 70m2
Loop Cable
Single turn loop cable. The system supplied with 40m (130ft) 24/0.2mm (0.75mm2) single core PVC insulated cable. Min cable length 11m = 0.5 Ohms
Indicators
Red & Blue LED’s
